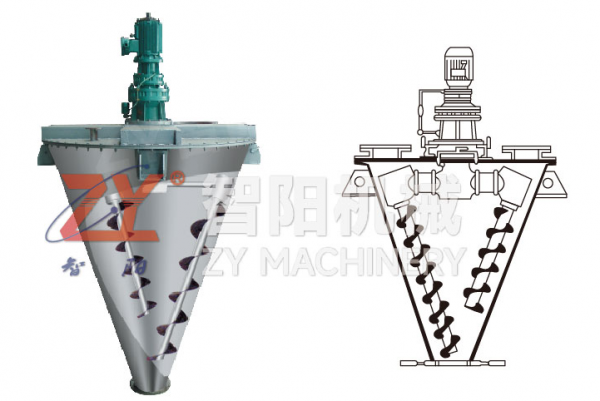

WH 双螺旋锥形混合机

　　概述 Summary

　　由螺旋的公、自转使物料在锥体内产生复合运动，主要产生四种运动形式:

　　1、螺旋沿壁公转，使物料沿锥壁作圆周运动

　　2、螺旋自转使物料自锥底沿螺旋上升

　　3、螺旋的公、自转复合运动使一部分物料被吸收到螺旋圆柱面内同时受螺旋自转的离心力作用使螺旋圆柱面内的一部分物料向锥体径向排放

　　4.上升的物料受自身重力作用下降。四种运动在混合机内产生对流、剪切、扩散、从而达到快速均匀混合的目的。

　　The material is made to conduct a compound motion in the cone because of the rotation and revolution of the screws. The effected motions include:

　　1. The revolution of the screw along the wall making the material conduct a circumferential motion;

　　2.The rotation of the screw making the material rise along the screw from the cone bottom;

　　3.The compound motion of the ratation and revolution of the screws making partial, material be absorbed into the screw cylindroid meanwhile, under the action of centrifugal force, the partial material in the screw cylindroid discharges radially.

　　4. The rised material drops under its sole weight. The four kinds of motions effect convection, shearing, diffusion in the cone, thus quick and even mixing can be achieved.

　　运用 Application

　　应用于化工、医药、农药、染料、石油、冶金、建材等粉体与粉体(固一固)，粉体与液体(固一液)，液体与液体(波一液)混合、反应、干燥、冷却。

　　It is suitable for chemical industry, pharmaceutical indus try pesticide,dyestuff, petroleum industry, metallurgica industry, construction material and etc. Such as in the mixing. reaction, drying,cooling of powder and powder(solid-solid) powder and liquid (solid-liquid), liquid and liquid (liquid-lig uid).
