FL-B型沸腾制粒机（一步制粒机）
FLUID-BED GRANULATOR(ONE-STEP GRANULATOR
★设备特点：Features of equipment
※混合 - 制粒 - 干燥一步法制粒。
※双捕集滤袋系统，清灰彻底。 ·多流体雾化器，确保成粒均匀。
※可选配两巴的防爆设计
※GMP 规范设计、制造及工程配置布局。
※Mixing-granulating-drying in one-step.
※Adopting double chamber filtering bags system, remove dust completely.
※Adopting multi-fluid nozzle, it guarantees that the formed granule is uniform and the
※content of powder is very low.
※Can choose 2 bar explosive-proof design
※Designed, manufactured and laid out by GMP
★应用概述 :General of applications
※本机主要用于：医药、食品、化工等行业的粉末物料混合、制粒、干燥、颗粒 “ 顶喷 ” 包衣等作业。如片剂颗粒、速溶饮料、调味品用颗粒。
※本机按 JB20014-2004 《药用沸腾制粒器》标准。
※The machine is mainly used for the operations of mixing, granulating, drying and coating of granule "Top Spraying", etc of powder material in pharmaceutical industry, foodstuff industry, chemical industry, etc. Such as granule of tablet, granule for quick resolving drinking, condiment.
※The machine is manufactured in accordance with JB20014-2004 《 Fluid-bed Granulator In Medicine 》

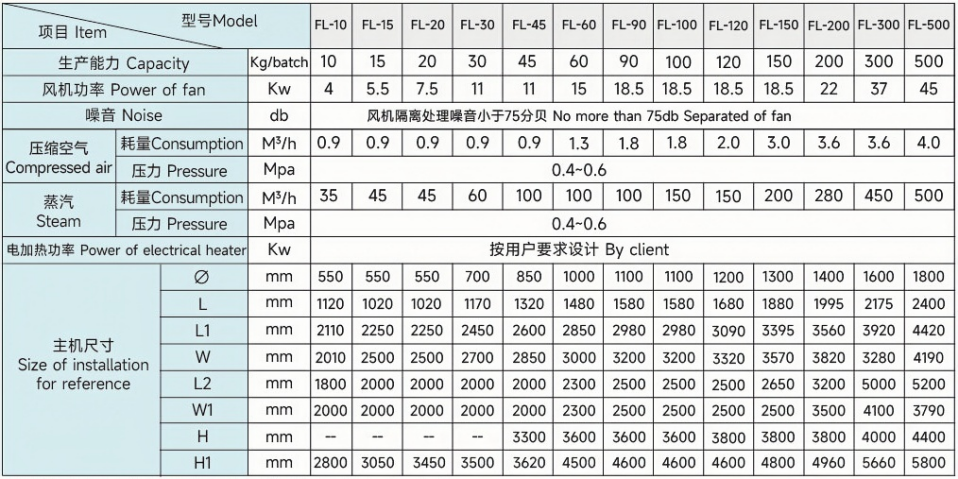

★技术参数:Technical Data
|
规格Specification
项目Item
|
3
|
5
|
15
|
30
|
45
|
60
|
90
|
120
|
150
|
200
|
300
|
500
|
800-
1000
|
|
投料量Capacity
|
Kg/批kg/batch
|
3
|
5
|
15
|
30
|
45
|
60
|
90
|
120
|
150
|
200
|
300
|
500
|
按用户要求设计
By
client
|
|
原料容器容量Container voiume
|
L
|
12
|
22
|
45
|
100
|
155
|
220
|
300
|
420
|
550
|
670
|
1000
|
1500
|
|
风机功率Power of fan
|
Kw
|
4
|
4
|
5.5
|
7.5
|
11
|
15
|
15
|
18.5
|
22
|
22
|
30
|
45
|
|
噪音Noise
|
db
|
风机隔离处理噪音小于75分贝No more than 75db Separated of fan
|
|
压缩空气
Compressed air
|
压强 Pressure
|
Mpa
|
0.6
|
|
耗量Consumption
|
M3/min
|
0.4
|
0.4
|
0.6
|
0.9
|
0.9
|
0.9
|
1.1
|
1.1
|
1.1
|
1.3
|
1.6
|
1.8
|
|
蒸汽
Steam
|
压强Pressure
|
Mpa
|
0.4-0.6
|
|
耗量Consumption
|
Kg/h
|
|
|
35
|
60
|
99
|
120
|
130
|
140
|
161
|
180
|
310
|
450
|
|
电加热功率Power of electrical heater
|
Kw
|
6kw
|
9kw
|
|
|
|
|
|
|
|
|
|
|
|
主机尺寸
Size of installation for reference
|
H1(mm)
|
|
|
2670
|
2760
|
2940
|
3190
|
3200
|
3430
|
3520
|
3690
|
3770
|
4240
|
|
H2(mm)
|
2600
|
2600
|
3030
|
3120
|
3430
|
3680
|
3690
|
3920
|
4010
|
4160
|
4240
|
4760
|
|
H3(mm)
|
2410
|
2410
|
2480
|
2570
|
2715
|
2950
|
2960
|
3190
|
3280
|
3450
|
3510
|
3960
|
|
B1(mm)
|
760
|
860
|
1010
|
1160
|
1320
|
1460
|
1560
|
1660
|
1760
|
1860
|
2060
|
2260
|
|
B2(mm)
|
1060
|
1660
|
1560
|
1860
|
2180
|
2460
|
2660
|
2860
|
3060
|
3260
|
3660
|
4060
|
|
L(mm)
|
850
|
1000
|
1100
|
1250
|
1530
|
1530
|
1530
|
1650
|
1650
|
1650
|
1750
|
1850
|
|
￠1
|
300
|
400
|
550
|
700
|
860
|
1000
|
1100
|
1200
|
1300
|
1400
|
1600
|
1800
|
|
￠2
|
150
|
180
|
180
|
180
|
250
|
280
|
280
|
280
|
280
|
280
|
315
|
355
|
所有尺寸仅作参考 , 视物料情况 , 本公司拥有变更权利 , 并不另行通知 .
*All sizes are used for reference only. According to the condition of material, our factory has the right change but not notice, pardon
